Orginal AutoRev
Model: ARM-5-LVC
$59.95 USD
  • Z to G Scale
  • 0 to 100% Throttle Operation
  • 5s to 3.5min. of Delay
  • Forward and Reversing Lights
  • Simple Installation
  • Screws and Standoffs Included
  • Screw Terminal Connections
  • Reversing Cycle Controlled by Delay Time and Throttle
  • One Year Warranty
  • The Original AutoRev provides automated back and forth running of a rail vehicle on short or long track. The module is AC powered allowing 0 to100% throttle operation. Typical uses include trolleys, streetcars narrow gauge lines and mine trams. The AUTOREV module is also suited for animated holiday displays in store windows, on the mantle or under the tree. Running time can be adjusted from 5s to 3.5min. Installation requires isolated sections of track, with rail gaps on at each end. Simple screw terminals make all electrical connections to the module. The module is designed to work with Z to G scaled locomotives which draw less than 5 Amps.

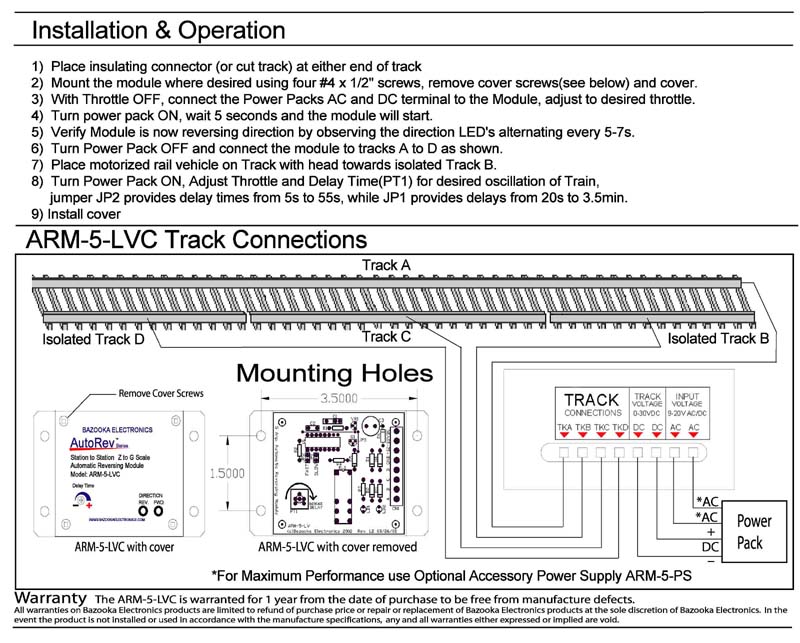

    ARM-5-LVC Instructions
